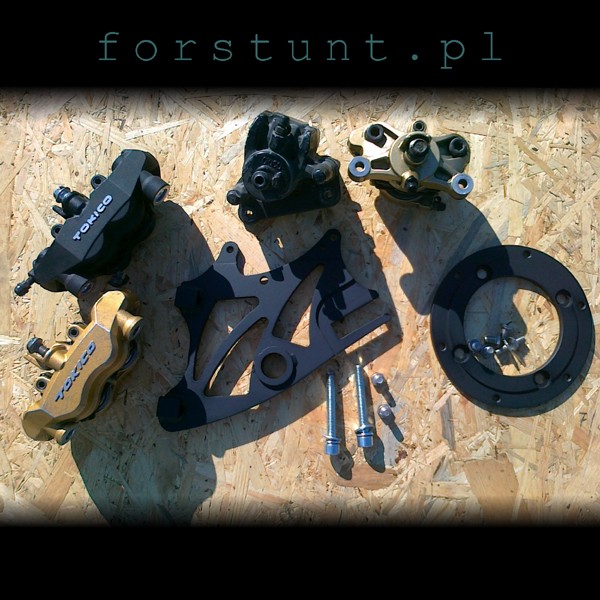

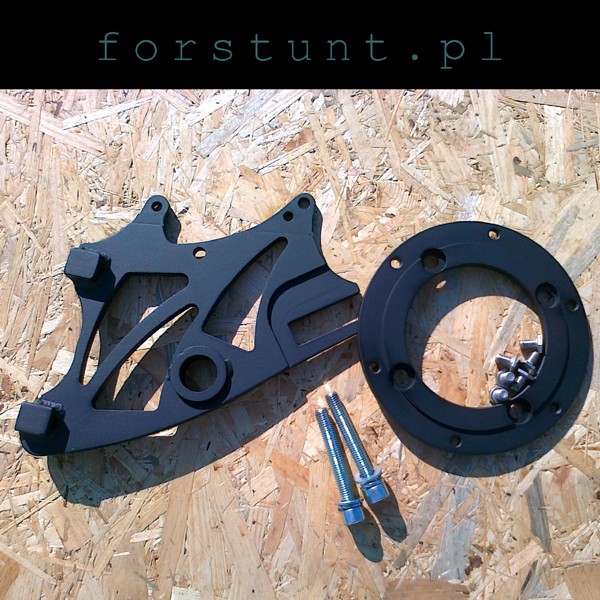

03-04 636 HB bracket + adapter for K6, K7, K8, K9, L0, L1 calipers

Universal clamp for mounting additional handbrake and adapter for 298mm disc. Fixing is radial caliper front of Suzuki K6, K7, K8, K9, L0, L1, after using 10mm spacers (available to order in the shop) can wear an terminal front of Suzuki GSXR 636 K4/K5 or front Rear clip can be mounted Kawasaki FB 636 (series) or the rear suzuki K4, K5 / Suzuki Bandit models: 650/1250 from the years 2005 to 2010. Adapter lets you mount the disc 298mm for the following motorcycles:

Outside diameter: 298mm
Inner diameter: 132mm
Thickness: 5mm
Number of Holes: 6
Hole diameter: 8.5 mm
- XJ 600 1998 '- 2003'
- YZF-R6 1999 '- 2002'
- YZF 600 R 1996 '- 2007'
- TDM 900 2002 '- 2007'
- FZS 1000 2001 '- 2005'
- YZF-R1 1000 1998 '- 2003'
- YZF 1000 R 1996 '- 2001'
- BT 1100 2002 '- 2006'
- XVS 1100 V-STAR CLASSIC A 2004 '- 2008'
- FJR 1300 2001 '- 2002'
- XJR 1300 1999 '- 2004'
- XVS 1300 2007 '- 2008'
- XV 1700 2004 '- 2007'
- XV 1700 2002 '- 2008'
- XV 1900 2006 '- 2007'
